Forged Steel Electric 2-Way High-Pressure Ball Valve for Reliable Control

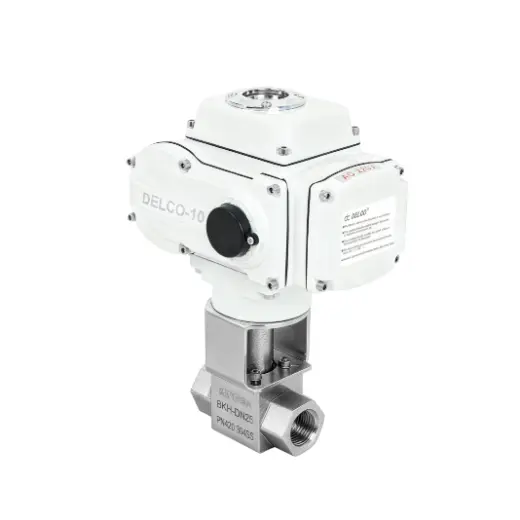

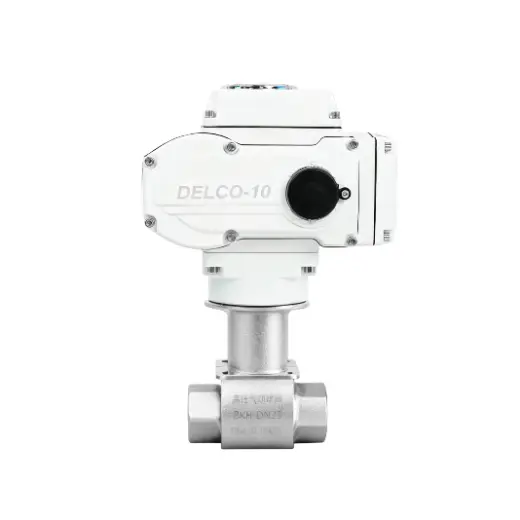

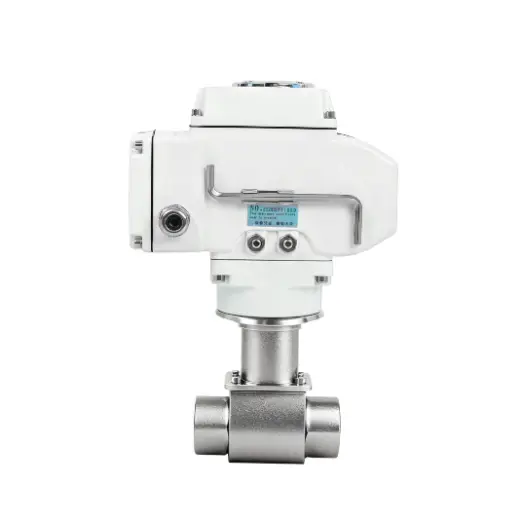

DELCO's Electric High-Pressure Ball Valve combines a robust forged steel body with an integrated angular stroke electric actuator. It ensures uniform structural compression and reliable performance under high working pressures, making it suitable for two-position ON/OFF and modulating control of corrosive and non-corrosive media.
Size Range: DN08-DN50
Material: WCB, Stainless Steel etc.
Pressure Range: 100~400Bar
Features
High-Pressure Forged Body & Multi-Signal Actuator Control
✅ Forged Steel Body for High-Pressure Integrity
Precision-forged steel eliminates casting defects (porosity/shrinkage), ensuring uniform pressure containment and stable high-pressure operation.
✅ Versatile Media Compatibility (WOG & Corrosives)
Engineered to handle standard non-corrosive media—Water, Oil, and Gas (WOG)—as well as aggressive acids and alkalis.
✅ Integrated Actuator with Flexible Control
Compact part-turn actuator supports standard 220V AC ON/OFF control, or modulating control via 4–20mA / 1–5V DC servo signals.
✅ High-Torque Self-Locking Worm Gear
Precision worm gear delivers high-efficiency torque with an inherent self-locking function to prevent fluid backdriving and maintain valve position.
✅ IP65 Weatherproof & Class F Motor Protection
Anti-corrosion aluminum alloy enclosure achieves IP65 protection. Class F motor insulation prevents thermal overload to extend operational life.
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
Browse our case studies or talk directly with our engineers to discuss your application.
Send Your Inquiry
Not sure which valve fits your project? Our engineers provide fast selection support and OEM customization.
For a faster and more precise quotation, kindly include details such as:
- The model or features you are looking for
- Your estimated purchase quantity
- Any OEM / branding requirements
- Target market or application
